Electronic Nerve Stimulator for Knee HV-F710-M
Specially designed for knee pain relief with targeted TENS therapy. The knee bands allow for an ergonomic fit to be comfortably worn on the knee, enabling pain therapy on-the-go without restricting movement.
(1 Review)
Engage TENS (Transcutaneous Electrical Nerve Stimulation) technology, drug-free treatment clinically proven to help to:
- Block the pain message
- Trigger the release of endorphins (=natural pain killers)
- Improve blood circulation (as result of repeated muscle contraction and muscle relaxation)
Proven Sweep Waveform Technology: OMRON's proprietary technology clinically proven for knee pain relief
Customizable treatment
Wearable and portable
Rechargeable Battery
The device is powered by a rechargeable lithium-ion battery that can last up to 5 hours when fully charged. Under normal conditions at 23°C, the battery can last for 500 uses when used 1 time/day. This feature spares you from the inconvenience and cost of frequently buying and replacing disposable batteries.
Disposal of the Device and Battery
Before disposing the main unit, remove the rechargeable battery and dispose according to applicable local regulations.
Main Unit, Soft Case, AC Adapter, Charger, Knee Band M, Knee Pad, Pad Holder, Instruction Manual, Quick Start Guide, Warranty Card
- Key Benefit Specially designed for knee pain relief, suitable for on-the-go convenience
- Target Area and Placement Knee
- Number of Modes 1
- Intensity Levels 20
- Frequency Approx. 1-250 Hz Sweep Waveform
- Easy-to-Read LCD Sceen Yes
- Duration Per Therapy Session 30 minutes
- Pad Type Knee pad (HV-KNPAD)
- Battery Type Rechargeable lithium-ion battery"
- Approximate Dimensions (mm) 60 (W) x 72 (H) x 15.7 (D)
- Weight 43g
- Pouch Included Yes

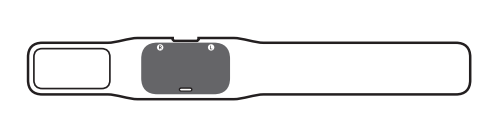

Knee Band M
HV-KBAND-M
450(W) x 64(H) mm
Band Circumference: 320 - 380mm

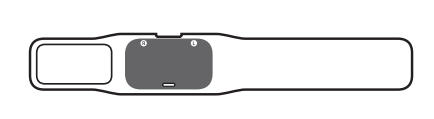

Knee Band L
HV-KBAND-L
510(W) x 64(H) mm
Band Circumference: 380 - 450mm

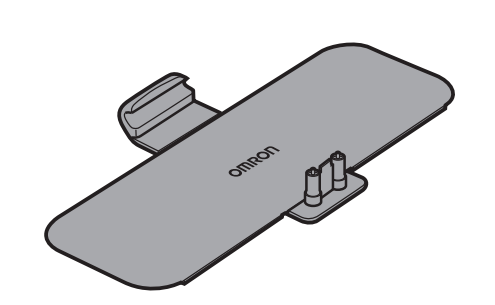

Knee Replacement Pad
Adhesive gel designed for use with HV-F710-M up to 30 times.

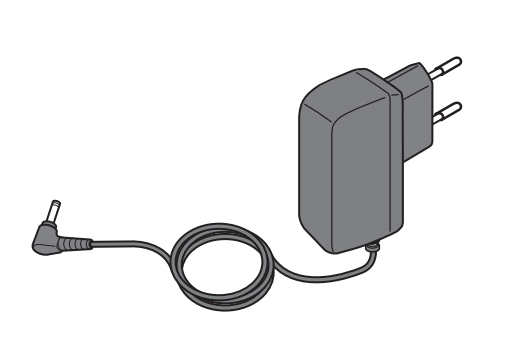

AC Adapter
HHP-CM01
TENS is a drug-free non-invasive therapy designed to reduce & relieve muscle or joint pain by applying electrical nerve stimulation to the surface of the skin near the site of the pain.
TENS can work in several ways, including: block the pain message from reaching the brain, trigger the body to produce more endorphins (=natural pain killers) or improve blood circulation.
Click here to find out more about Omron’s Pain Therapy products.
TENS relieves pain in two ways:
Standard High-Frequency Treatment
1. Pulse Rate is set to 60 pulses per second or more.
2. Produces a steady "buzzing" or "tingling" feeling between the electrodes
3. Produces an electrical signal that is stronger than the pain signal that the body produces. Because the signal is perceived as stronger, it effectively blocks the pain signal from travelling along nerves to the brain.
4. Effective for acute pain
Low-Frequency Treatment
1. Pulse Rate is below 10 pulses per second or at "burst" mode.
2. Produces visible muscle twitching & "tapping" or "pulsating" feeling
3. The body reacts to this type of stimulation by releasing "endorphins" (pain-killing chemicals produced naturally in the body)
4. These endorphins act as a chemical nerve block, effectively reducing pain by interrupting the flow of pain signals along the nerves.
5. Effective for chronic pain, stiffness & numbness
A simple, drug-free solution for relief of muscle & joint pain. Under your personalized control, our TENS units deliver gentle massage-like pulses, providing on the spot pain relief. Available without a prescription, Omron TENS unit may help relieve pain in about 15 minutes.
Click here to find out more about Omron’s Pain Therapy products.
Yes! TENS has been prescribed by medical professionals & used for over 30 years by physicians, chiropractors, & physical therapists as an effective pain relief solution.
Click here to find out more about Omron’s Pain Therapy products.
Adults who suffer from joint or muscle pain can use this therapy. However, it should not be used by children, pregnant women, or anyone who has an implanted metallic or electronic device. Consult your doctor if you have any questions related to your health.
